Vent Covers Unlimited Free Shipping
Winter Discount Vent Covers Unlimited
On Sale!

Imperial Design Vent Covers - Made to Order

SKU:
VCU-IM-MTO
Was
Retail $24.80
Sale Price: $22.95 - $771.95
(You save )
(4 reviews) Write a Review
Black
Oil Rubbed Bronze
White
Silver
Sun Gold
Gray (Paintable)
Manufacturing time is 4-5 weeks

Description

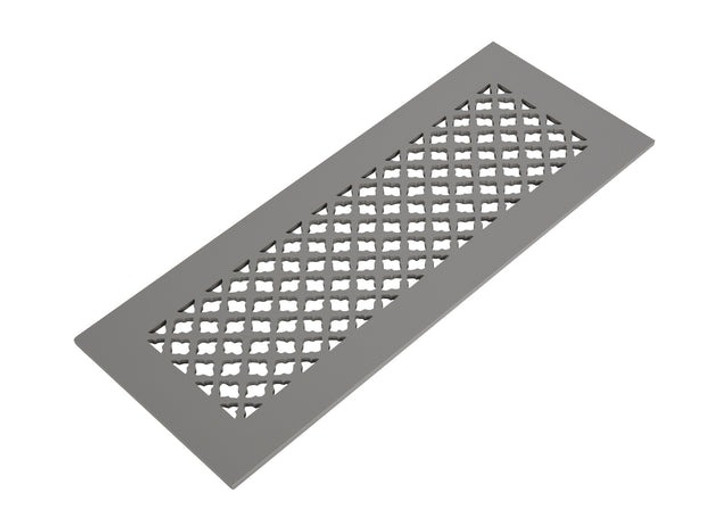

Imperial Design Vent Cover - Made to Order Collection

A classic clover leaf pattern to complement traditional and contemporary spaces. With our laser-cut capability, we can offer you options tailored to your project: 30+ sizes, 2 materials, 3 thicknesses, 6 colors, and optional mounting holes and underside lip. The steel or aluminum Imperial grille is available in 6 colors: Oil-Rubbed Bronze, Black, Sun Gold, White, Silver and Gray.

Laser Cut Aluminum & Steel Details:

  • Available in three thicknesses: 1/8", 3/16" and 1/4"
  • Lead time with an underside lip is 2-3 weeks
  • Lead time without an underside lip is 1-2 weeks
  • Aluminum 1/8” is not recommended for floor installation.

Product Details & Specifications

Available Materials

Aluminum

  • Crafted from premium quality aluminum
  • Lighter in weight than laser cut steel
  • Ideal for Wall and Ceiling installations
  • Aluminum available in 3⁄16” only
  • Lead time with an underside lip is 2-3 weeks
  • Lead time without an underside lip is 1-2 weeks

Steel

  • Crafted from premium quality steel
  • Heavier in weight than laser cut aluminum
  • Ideal for Floor, Wall and Ceiling installations
  • Available in three thicknesses: 1/8", 3/16" and 1/4"
  • Lead time with an underside lip is 2-3 weeks
  • Lead time without an underside lip is 1-2 weeks

Available Thicknesses

3/16"

The leading choice for most installation types.

  • 3/16" Steel: Low to medium traffic floors, walls, and ceilings
  • 3/16" Aluminum: Walls and ceilings

1/8"

Our thinnest grille option for walls and ceilings only.

Steel Only*

1/4"

A heavier grille option for different installation types.

Steel Only*

Available Finishes

Oil Rubbed Bronze
Gray - Paintable
Silver
White
Black
Sun Gold

Optional Underside Lip

When do you need an underside lip?

If the grille is being used for a floor installation, then you may choose an Underside Lip to hold the grille in place. If you choose it without an Underside Lip for floor installation, then you need to either (1) recess the grille into the floor so it’s flush with the floor or (2) get the grille with mounting holes to hold it in place.

If you choose an Underside Lip for a floor installation, do you still need mounting holes?

If you choose a grille with an Underside Lip, you may still want mounting holes. In high traffic areas, mounting holes keep the grille securely in place. Mounting holes also deter children from lifting or removing the grille from its opening. Mounting holes are not required for grilles with an Underside Lip (for floor installation), but may be preferred.

When is an Underside Lip for floor installation not recommended?

An Underside Lip is not recommended when your opening is not evenly cut, as an Underside Lip may not fit

3/4" Underside Lip
No Underside Lip - Flat

Schematics & Specifications

(4" x 12" Pictured)

  • Duct Size Dimensions: 10.00” x 4.00”
  • Outside Dimensions: 12.00” x 5.50”
  • Design Dimensions: 9.63” x 3.62”
  • Made in USA

Dimensions

Duct Size (Order Size) Overall Size
2¼" x 10"
3½" x 12"
2¼" x 12"
3½" x 14"
2¼" x 14"
3½" x 16"
4" x 8"
5½" x 10"
4" x 10"
5½" x 12"
4" x 12"
5½" x 14"
4" x 14"
5½" x 16"
6" x 6"
8" x 8"
6" x 10"
8" x 12"
6" x 12"
8" x 14"
6" x 14"
8" x 16"
6" x 22"
8" x 16"
6" x 24"
8" x 26"
6" x 30"
8" x 32"
8" x 8"
10" x 10"
8" x 10"
10" x 12"
Duct Size (Order Size) Overall Size
8" x 12"
10" x 14"
8" x 14"
10" x 16"
9" x 20"
11" x 22"
10" x 10"
12 x 12"
10" x 14"
12" x 16"
10¼" x 12¼"
12" x 14"
12" x 12"
14½" x 14½"
12" x 14"
14½" x 16½"
12" x 24"
14½" x 26½"
14" x 14"
16½" x 16½"
14" x 18"
16½" x 20½"
18" x 18"
20½" x 20½"
18" x 30"
20½" x 32½"
24" x 24"
26½" x 26½"
29-5/8" x 29-5/8"
32" x 32"
Custom Sizes Available


Optional Louver - Air Control

Air Control - Louver Basics:

These louver assemblies are designed to fit behind our grilles to control air flow and increase heating and cooling efficiency. Mounted independently of the grille, they are opened and closed with a flathead screwdriver, provided by the customer. In some cases, you may have to remove the grille to adjust louvers. Allow 2 5/16" clearance for louvers behind grille. Foam strips for installation are included with each louver.

  • Louver Installs Directly in Air Duct
  • Open & Close Louver Using Included Key or flathead screwdriver.
  • Does not direct air flow
  • Includes Foam Strip for a snug fit
  • Does NOT Attach to Grille
