Aluminum Vertical Bar Floor Register

Fully Extruded Vertical Bar Floor Register

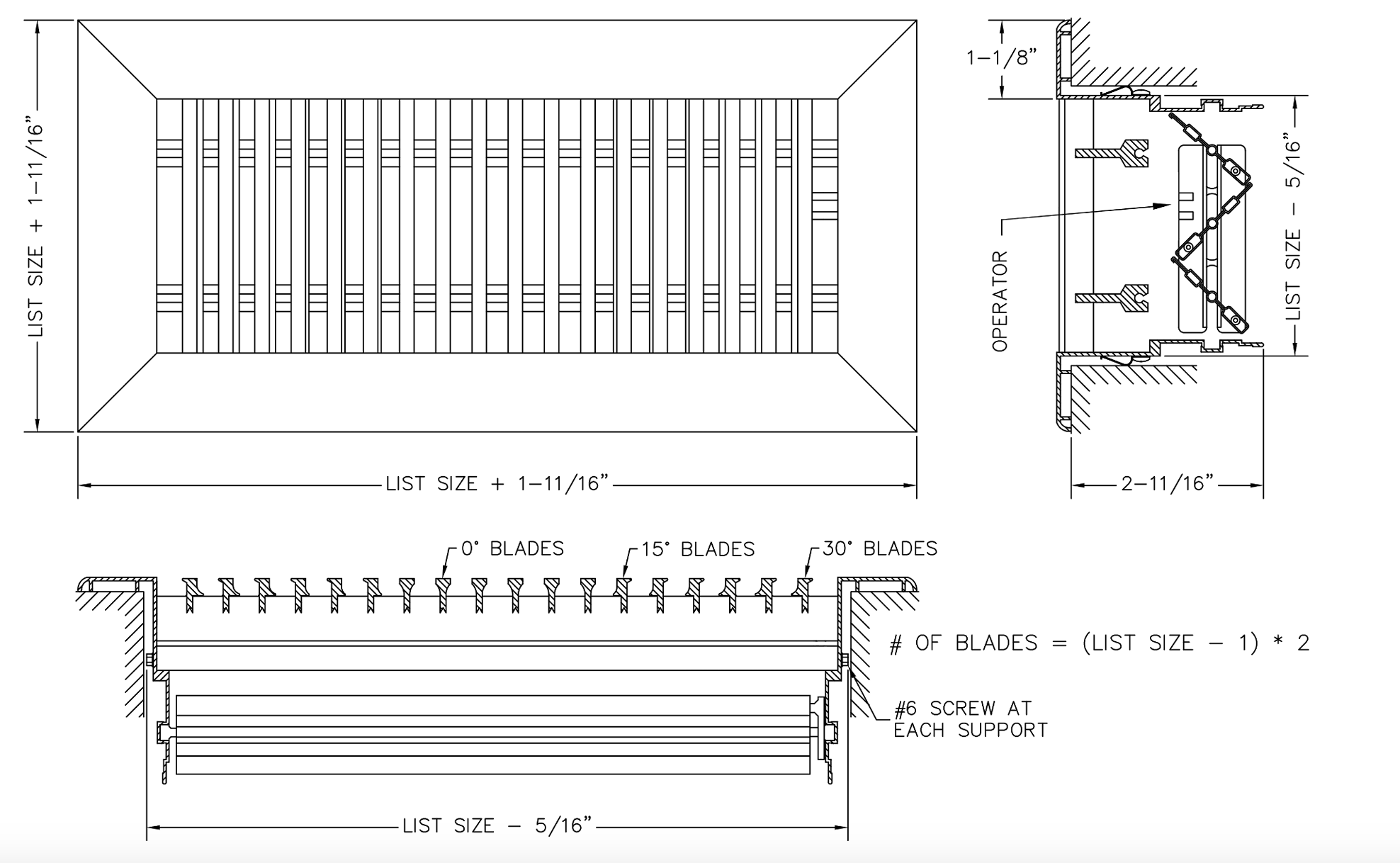

The DAFD is a fully extruded bar linear register approved for floor installation. Its fixed blades are parallel to the short dimension.

Features:

• Fixed blades run parallel to short dimension
• Blade deflection transitions from 0°, 15°, and 30° for wider air distribution
• Reinforced core designed for floor applications
• Fully extruded architectural aluminum metal construction
• Opposed blade damper with concealed operator design
• Available on 1/2" standard dimensions
• Custom sizes manufactured up to 1/16" increments
• Available in durable powder coat finish standard
